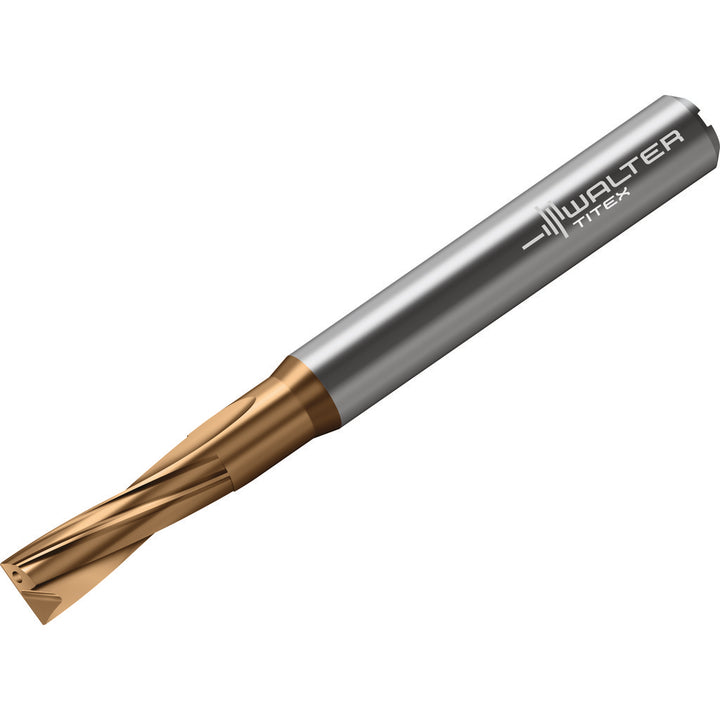

1/8" Solid Carbide Drill Bit, Multi-layer, 180° point - Walter-Titex 8221562

Walter-Titex

1/8" Solid Carbide Drill Bit, Multi-layer, 180° point - Walter-Titex 8221562

MFR# 8221562Series DC118-02-A1

$162.46List $185.75 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 8221562 is a 1/8" Solid Carbide drill bit with a Multi-layer finish, 180° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC118-02-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit gradeWJ30ET
Drill bit size in1/8
Drill point angle180
Drill point length0.0000
Flute by diameter ratio2xD
Flute length0.4724
Flute typeRegular Spiral
Maximum drilling depth0.3031
Number of flutes2
Overall length2.4409
Point typeFlat Bottom
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2362
Shank length1.6535
Shank typeWhistle Notch
Spiral typeRegular
Tool materialSolid Carbide
