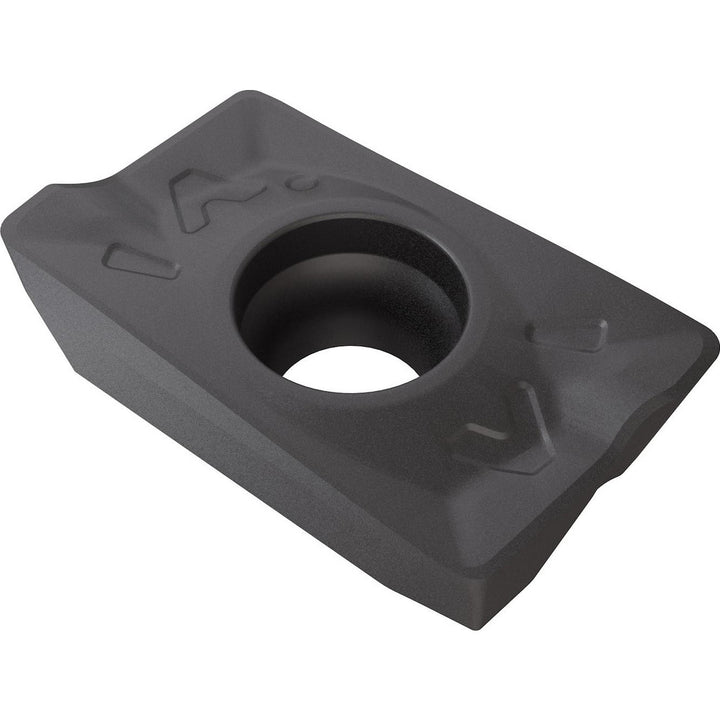

APKT160408-TR-YG602 Solid Carbide Insert, Grade YG602, TiAlN - YG-1 12000256

YG-1

APKT160408-TR-YG602 Solid Carbide Insert, Grade YG602, TiAlN - YG-1 12000256

MFR# 12000256ISO/ANSI# APKT160408-TR-YG602Cat# APKT160408-TR-YG602Series APKT

$12.41List $15.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeYG602
MaterialSolid Carbide
CoatingTiAlN

Description

The YG-1 12000256 is a APKT160408-TR-YG602 solid carbide indexable insert, grade YG602, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeAPKT160408-TR-YG602
Chip breakerTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityE90-AP; F90-AP
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.3700
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160408
Insert styleAPKT
Iso codeAPKT160408-TR-YG602
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberAPKT160408-TR-YG602
Manufacturer gradeYG602
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeP20; M20; K20; S15
Maximum depth of cut0.5980
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2090
Thickness range0.2000 to 0.2200
Width0.3700
