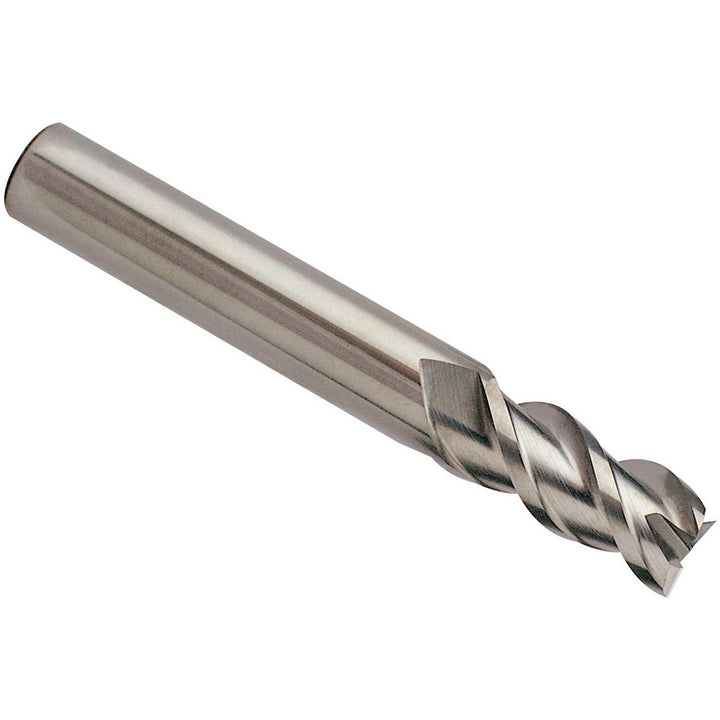

5/8" 3-Flute Solid Carbide Square End Mill, TiCN - YG-1 28595TC

MFR# 28595TCSeries E5981

$198.36List $254.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

The YG-1 28595TC is a 5/8 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 1-5/8 length of cut, 3-1/2 overall length. Series E5981.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance0.0000 to -0.0005 in

Number of flutes3

Overall length in3-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/8

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
