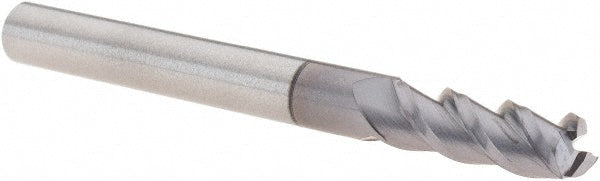

3/16in" 3-Flute Solid Carbide Square End Mill, TiCN - YG-1 34565TC
MFR# 34565TCSeries E5243
$34.56List $44.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingTiCN
Description
The YG-1 34565TC is a 3/16in 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel. 9/16in length of cut, 2in overall length. Series E5243.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in9/16in
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes3
Overall length in2in
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron; Super Alloys & Titanium
Shank diameter in3/16in
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
