YG-1

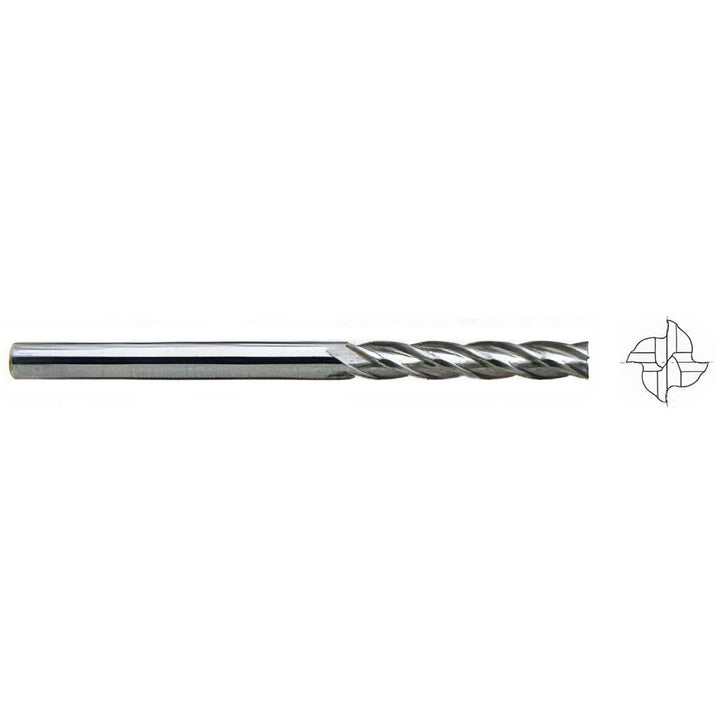

3/4" 4-Flute Solid Carbide Square End Mill, TiAlN - YG-1 55598TF
MFR# 55598TFSeries E5065
$385.19List $494.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 55598TF is a 3/4 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel. 3 length of cut, 6 overall length. Series E5065.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in6
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in3/4
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
