YG-1

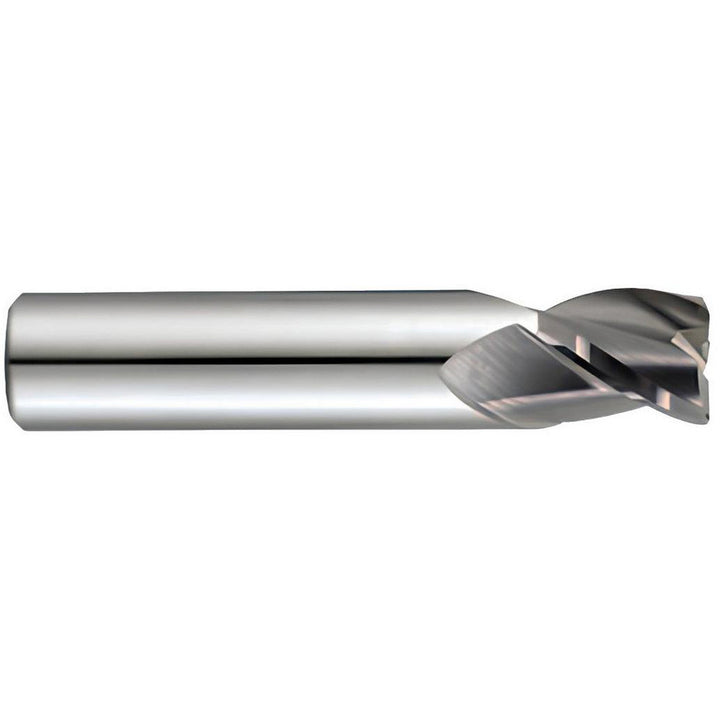

3/16" 3-Flute Solid Carbide Corner Radius End Mill, TiAlN-Futura - YG-1 57565TF

MFR# 57565TFSeries E5075

$46.27List $59.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingTiAlN-Futura

Description

The YG-1 57565TF is a 3/16 3-flute Solid Carbide (MG) corner radius end mill with a TiAlN-Futura finish for longer tool life. Suited for steel, stainless steel. 5/16 length of cut, 2 overall length. Series E5075.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN-Futura

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleMedium

Length of cut in5/16

Length typeStub

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMG

Material removal typeRoughing

Mill diameter in3/16

Mill diameter tolerance0.0000 to 0.0012 in

Number of flutes3

Overall length in2

PitchCoarse

Primary workpiece materialSteel; Stainless Steel

Secondary workpiece materialCast Iron

Shank diameter in3/18

Shank diameter tolerance0.0000 to 0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
