YG-1

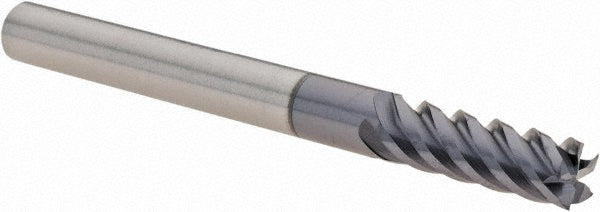

3/16in" 5-Flute Solid Carbide Square End Mill, TiAlN - YG-1 86565TF
MFR# 86565TFSeries E5067
$36.16List $46.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes5
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 86565TF is a 3/16in 5-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel. 9/16in length of cut, 2in overall length. Series E5067.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in9/16in
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes5
Overall length in2in
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in3/16in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
