YG-1

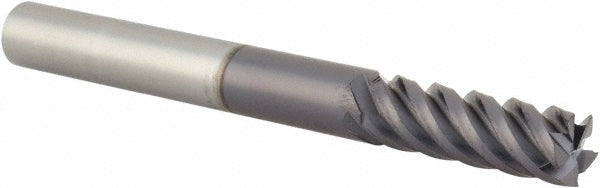

1/4in" 5-Flute Solid Carbide Square End Mill, TiAlN - YG-1 86573TF
MFR# 86573TFSeries E5067
$48.91List $62.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes5
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 86573TF is a 1/4in 5-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel. 3/4in length of cut, 2-1/2in overall length. Series E5067.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4in
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4in
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes5
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel
Secondary workpiece materialCast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in1/4in
Shank diameter tolerance+0.0000 to -0.0003 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
