YG-1

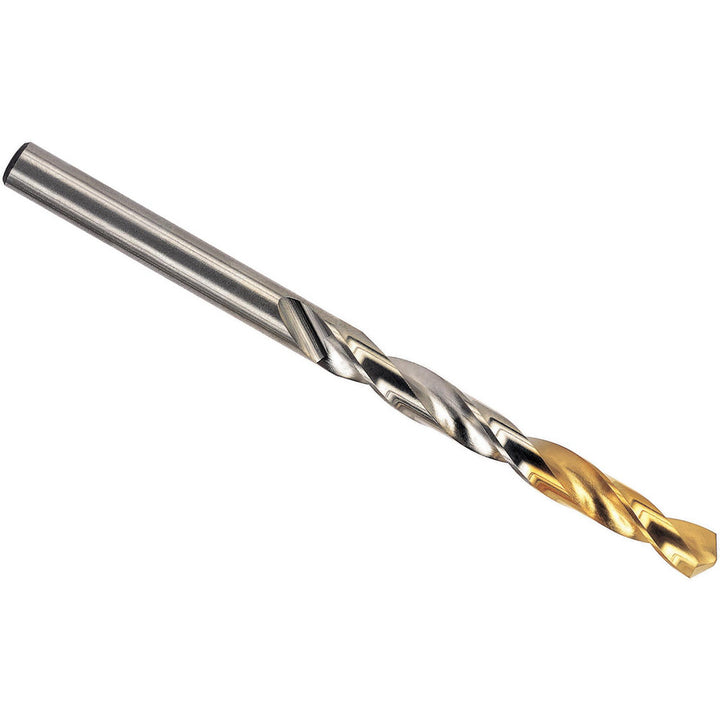

#31 HSS Drill Bit, TiN, 118° point - YG-1 D1GP138226
MFR# D1GP138226Series D1GP138
$1.76List $2.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The YG-1 D1GP138226 is a #31 HSS drill bit with a TiN finish, 118° point. Suited for steel. 1-5/8 flute length, 2-3/4 overall length. Series D1GP138.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.1200
Drill bit size range0.1000 - 0.1500
Drill bit size wire#31
Drill point angle degrees118
Flute by diameter ratio14xD
Flute length in1-5/8
Flute typeRegular Spiral
Maximum drilling depth in1-5/8
Number of flats0
Number of flutes2
Overall length in2-3/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.1200
Shank length in1-1/8
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
