YG-1

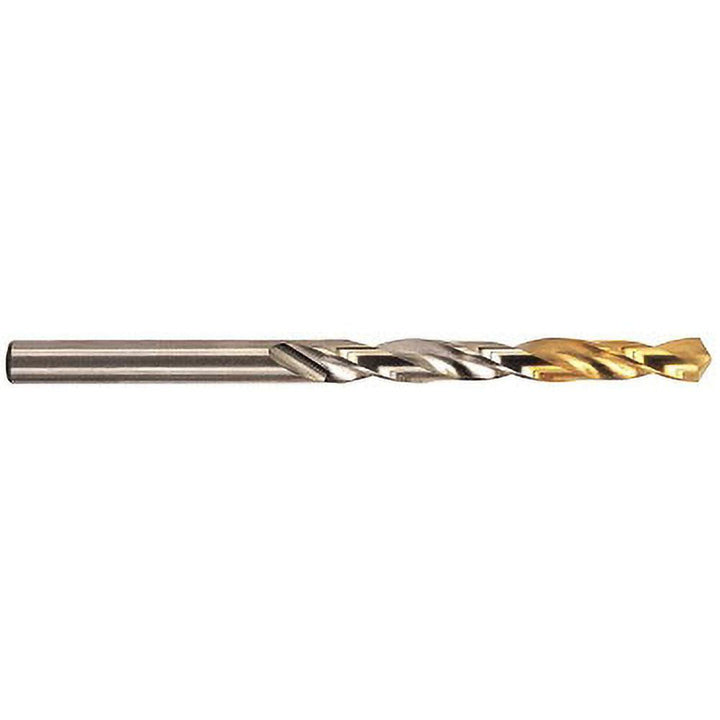

#9 High Speed Steel Drill Bit, TiN, 118° point - YG-1 D1GP138248
MFR# D1GP138248Series D1GP138
$2.96List $3.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The YG-1 D1GP138248 is a #9 High Speed Steel drill bit with a TiN finish, 118° point. Suited for steel. 2-7/16 flute length, 3-5/8in overall length. Series D1GP138.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1960
Drill bit size range0.1500 - 0.2000
Drill bit size wire#9
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-7/16
Flute typeSpiral
Maximum drilling depth in2-7/16
Number of flats0
Number of flutes2
Overall length in3-5/8in
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.1960
Shank length in1-3/16in
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
