YG-1
#44 High Speed Steel Drill Bit, TiN, 135° point - YG-1 D2GP187213
MFR# D2GP187213Series D2GP187
$2.10List $2.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

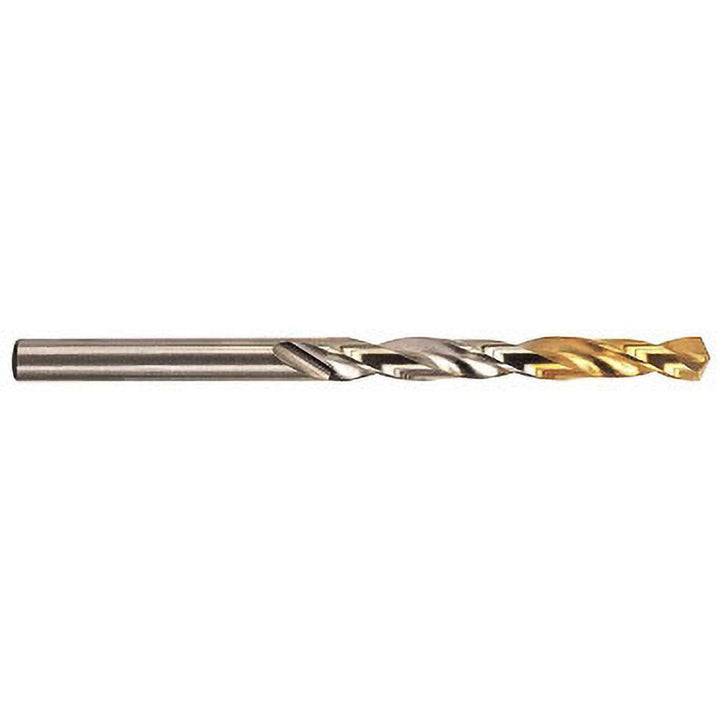

The YG-1 D2GP187213 is a #44 High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel. 1-1/8 flute length, 2-1/8 overall length. Series D2GP187.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0860
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-1/8
Flute typeSpiral
Maximum drilling depth in1-1/8
Number of flats0
Number of flutes2
Overall length in2-1/8
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.0860
Shank length in1
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
