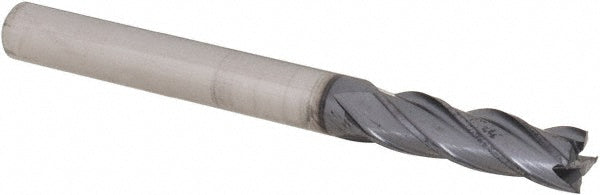

3/16" 4-Flute Solid Carbide Square End Mill - YG-1 GM153012

YG-1

3/16" 4-Flute Solid Carbide Square End Mill - YG-1 GM153012

MFR# GM153012

$28.67List $36.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The YG-1 GM153012 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance0.0000 to -0.0012 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.0000 - -0.0003 in
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
