YG-1

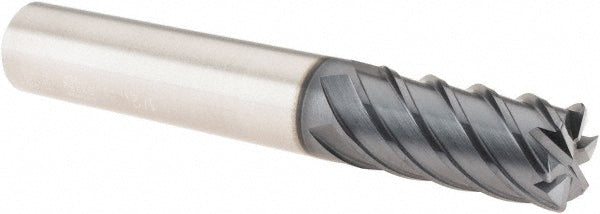

1/2" 6-Flute Solid Carbide Corner Radius End Mill - YG-1 GM668902
MFR# GM668902Series GM
$188.98List $242.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
Description
The YG-1 GM668902 is a 1/2 6-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel. 1 length of cut, 6 overall length. Series GM.
Specifications
CentercuttingNo
ChipbreakerNo
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1
Length typeExtended
Manufacturers catalog numberGM668902
Material applicationSteel
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0012 in
Number of flutes6
Overall length in6
PitchClose
Primary workpiece materialSteel
Reach length in3-1/4
Secondary workpiece materialCast Iron
Shank diameter in1/2
Shank diameter tolerance+0.0000/-0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
