YG-1

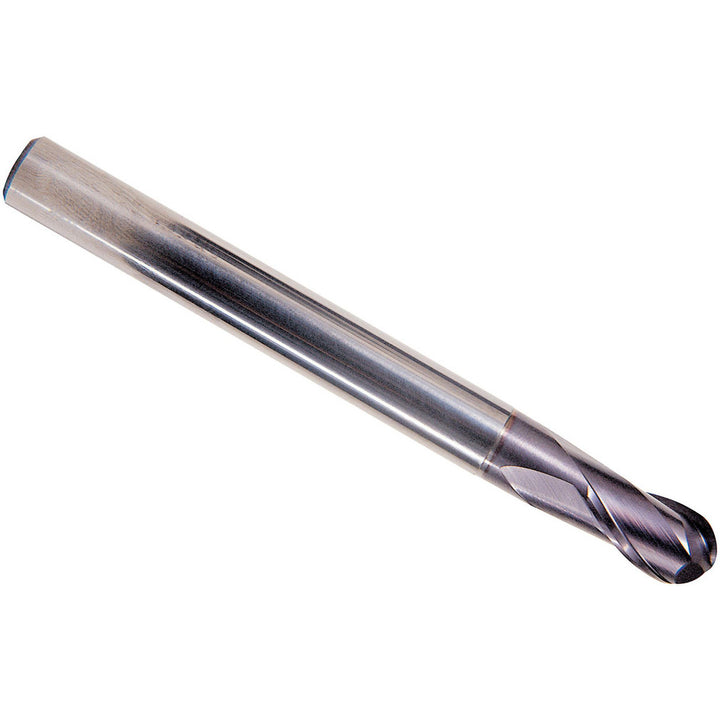

1/4" 2-Flute Solid Carbide Ball End Mill, TiAlN - YG-1 GM961016

MFR# GM961016Series GM961

$76.06List $97.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The YG-1 GM961016 is a 1/4 2-flute Solid Carbide (Micrograin) ball end mill with a TiAlN finish for longer tool life. Suited for steel. 1/2 length of cut, 3-1/8 overall length. Series GM961.

Specifications

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1/2

Length typeExtended

Manufacturers catalog numberGM961016

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0012 in

Neck diameter0.2420

Neck length in3/8

Nose radius0.1250

Number of flutes2

Overall length in3-1/8

Primary workpiece materialSteel

Reach length in7/8

Secondary workpiece materialCast Iron

Shank diameter in1/4

Shank diameter tolerance+0.0000/-0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
