YG-1

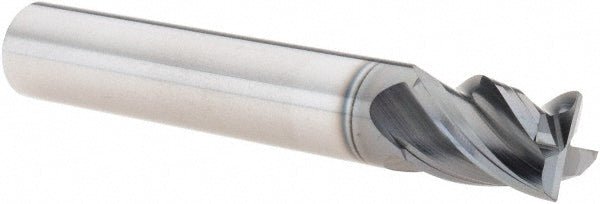

3/8" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 UGMF70024

MFR# UGMF70024Series UGMF70

$65.21List $83.64 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

Description

The YG-1 UGMF70024 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron. 1/2 length of cut, 2-1/2 overall length. Series UGMF70.

Specifications

Additional informationSpecial Flute Geometry & Multiple Helix Eliminate Vibrations. Excellent Performance for Stainless SteelsMild SteelsCast IronLow/Medium Hardness Materials & All Exotic Materials Up to Hrc40. Advanced Coating for Superior Performance & Tool Life

CentercuttingYes

ChipbreakerNo

Coolant throughNo

Corner radius0.0100

Corner radius tolerance+0.0008 to -0.0008 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in1/2

Length typeStandard

Manufacturers catalog numberUGMF70024

Material applicationSteel; Stainless Steel; Cast Iron

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0012 in

Number of flutes4

Overall length in2-1/2

PitchVariable

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1/2

Secondary workpiece materialSuperalloys & Titanium

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
