YG-1

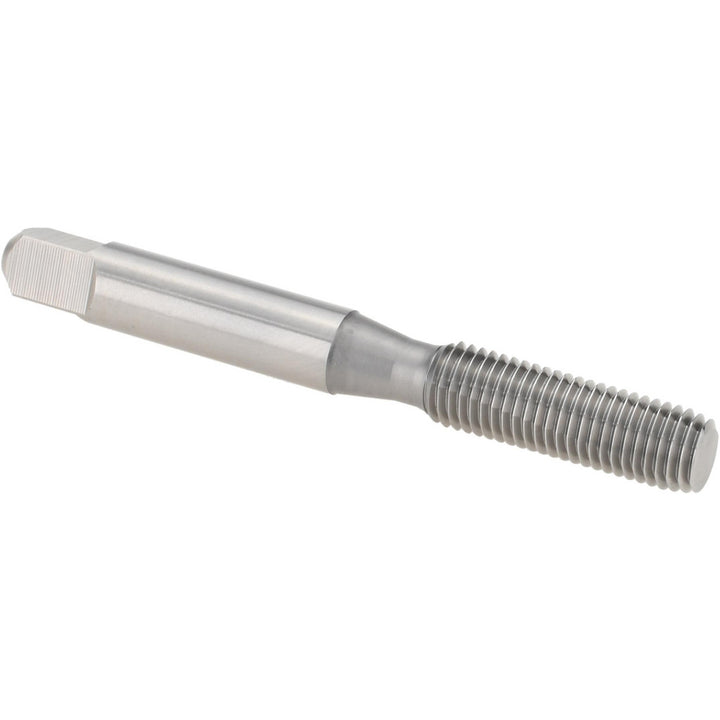

5/16-24 UNF High-Speed Steel-E-V3 Tap - YG-1 Z2465
MFR# Z2465Series Z2
$19.85List $25.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
Description
The YG-1 Z2465 is a 5/16-24 UNF High-Speed Steel-E-V3 tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-V3
Oil grooves4
Overall length2.7200
Shank diameter0.3180
Square size0.2380
Tapping depth1.1300
Thread directionRight Hand
Thread length0.9300
Thread limitH5
Thread size in5/16-24
Thread standardUNF
