Allied Machine and Engineering

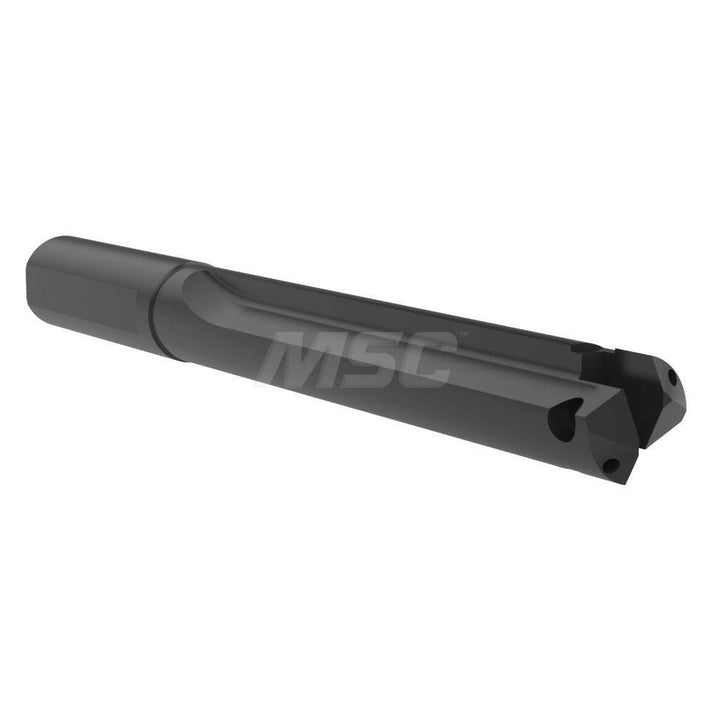

Indexable Drilling - Allied Machine and Engineering 20611-1000
MFR# 20611-1000Series HP-A
$366.58List $443.18
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 20611-1000 indexable drilling. Suited for universal. Series HP-A.
Specifications
Body length in3-17/32
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in3
Flute typeStraight
Length typeShort
Maximum drill depth in3
Maximum drill diameter in1-3/8
Minimum drill diameter in31/32
Overall length in6-1/2
Primary workpiece materialUniversal
Shank diameter in1
Shank length in3-1/2
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
