Allied Machine and Engineering

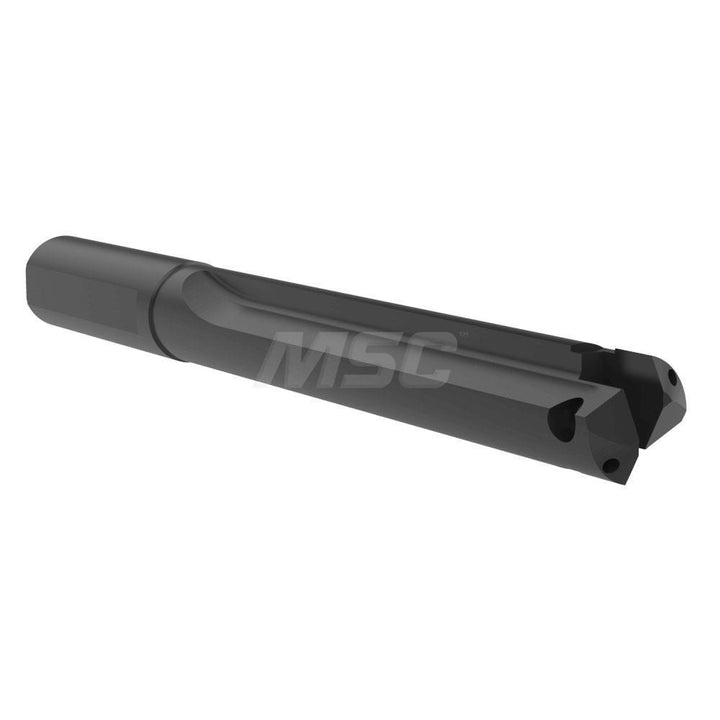

Indexable Drilling - Allied Machine and Engineering 20631-1250
MFR# 20631-1250Series HP-C
$470.25List $567.74
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 20631-1250 indexable drilling. Suited for universal. Series HP-C.
Specifications
Body length in5
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in4
Flute typeStraight
Length typeShort
Maximum drill depth in4
Maximum drill diameter in2-3/8
Minimum drill diameter in1-1/2
Overall length in8
Primary workpiece materialUniversal
Shank diameter in1-1/4
Shank length in4
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
