Allied Machine and Engineering

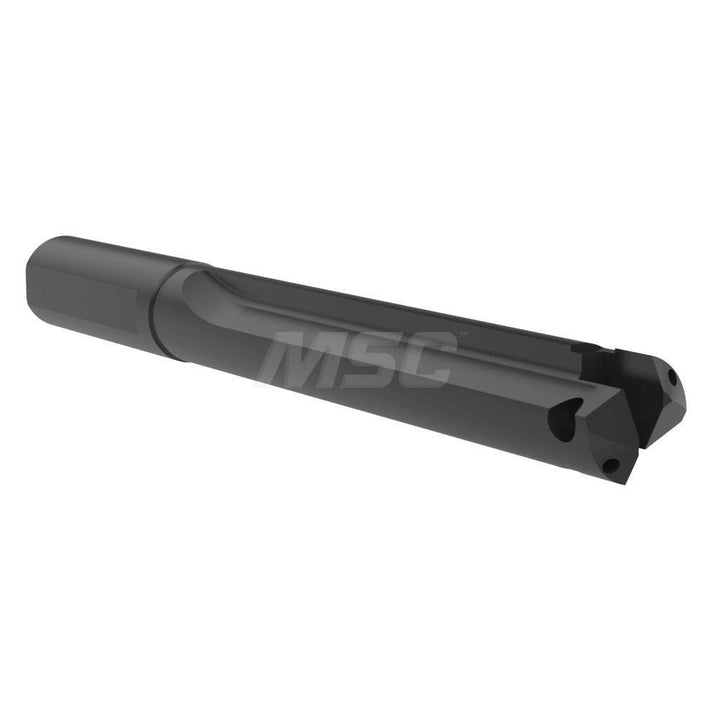

Indexable Drilling - Allied Machine and Engineering 20841-1500
MFR# 20841-1500Series HP-D
$669.33List $809.19
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 20841-1500 indexable drilling. Suited for universal. Series HP-D.
Specifications
Body length in10
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in9
Flute typeStraight
Length typeStandard
Maximum drill depth in9
Maximum drill diameter in2-7/8
Minimum drill diameter in2
Overall length in13
Primary workpiece materialUniversal
Shank diameter in1-1/2
Shank length in4
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceHigh Performance
