Allied Machine and Engineering

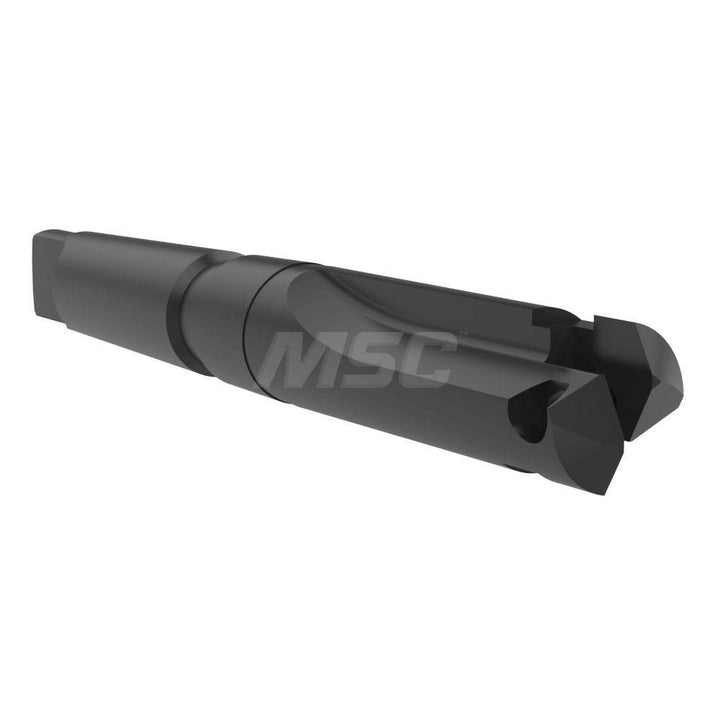

Indexable Drilling - Allied Machine and Engineering 21611-0004
MFR# 21611-0004Series HP-A
$301.35List $363.82
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 21611-0004 indexable drilling. Suited for universal. Series HP-A.
Specifications
Body length in5-15/32
Coolant entry style code2-Radial Entry
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in3
Flute typeStraight
Length typeShort
Maximum drill depth in3
Maximum drill diameter in1-3/8
Minimum drill diameter in31/32
Overall length in9-9/16
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-4SR
Shank diameter1.2310
Shank length in4-7/8
Shank taper size4MT
Shank typeTaper
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
