Allied Machine and Engineering

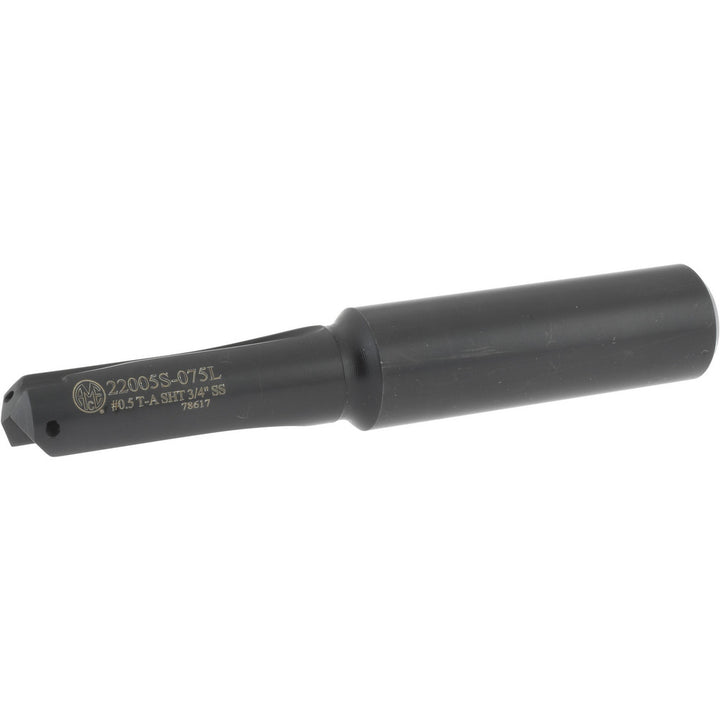

Indexable Drilling - Allied Machine and Engineering 22005S-075L
MFR# 22005S-075LSeries T-A 0.5
$217.80List $267.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 22005S-075L indexable drilling. Suited for universal. Series T-A 0.5.
Specifications
Body length in2-3/16
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in1-3/8
Flute typeStraight
Length typeShort
Maximum drill depth in1-3/8
Maximum drill diameter in11/16
Minimum drill diameter in39/64
Overall length in4-9/16
Primary workpiece materialUniversal
Shank diameter in3/4
Shank length in2-3/8
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceGeneral Purpose
