Allied Machine and Engineering

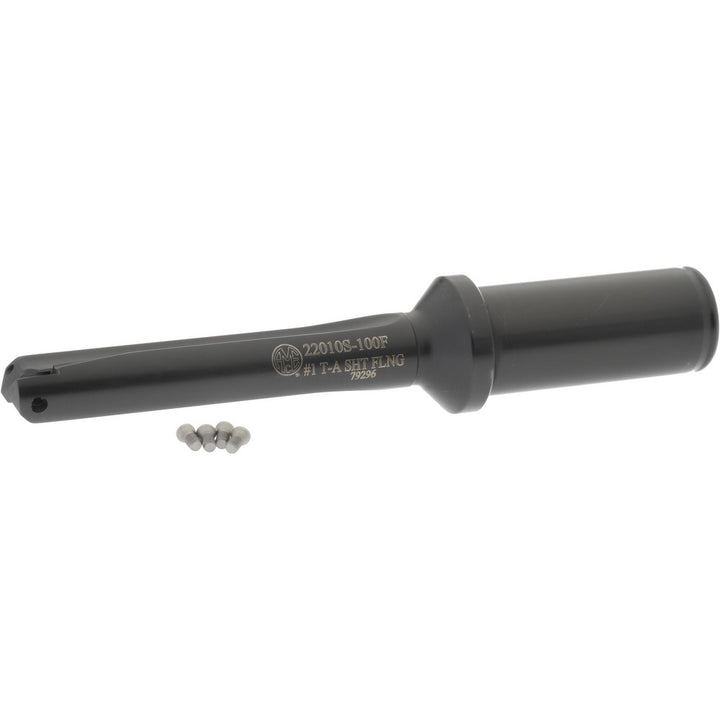

Indexable Drilling - Allied Machine and Engineering 22010S-100F
MFR# 22010S-100FSeries T-A 1
$227.36List $278.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 22010S-100F indexable drilling. Suited for universal. Series T-A 1.
Specifications
Body length in4-7/32
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant throughYes
Flute length in2-5/8
Flute typeStraight
Length typeShort
Maximum drill depth in2-5/8
Maximum drill diameter in15/16
Minimum drill diameter in45/64
Overall length in6-1/2
Primary workpiece materialUniversal
Shank diameter in1
Shank length in2-9/32
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceGeneral Purpose
