Allied Machine and Engineering

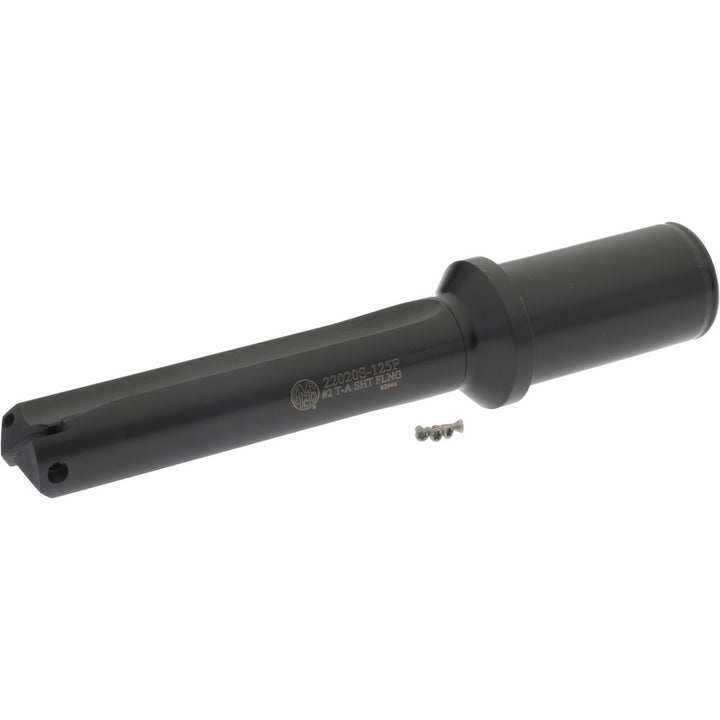

Indexable Drilling - Allied Machine and Engineering 22020S-125F
MFR# 22020S-125FSeries T-A 2
$244.34List $300.74
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 22020S-125F indexable drilling. Suited for universal. Series T-A 2.
Specifications
Body length in5-1/16
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/4
Coolant throughYes
Flute length in3-3/8
Flute typeStraight
Length typeShort
Maximum drill depth in3-3/8
Maximum drill diameter in1-3/8
Minimum drill diameter in31/32
Overall length in7-11/32
Primary workpiece materialUniversal
Shank diameter in1-1/4
Shank length in2-9/32
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceGeneral Purpose
