Allied Machine and Engineering

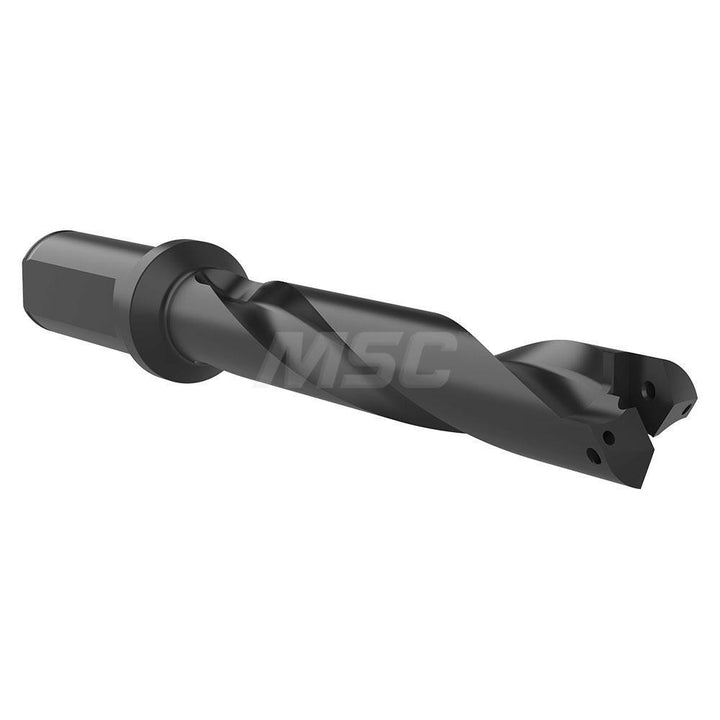

Indexable Drilling - Allied Machine and Engineering 23015H-100F
MFR# 23015H-100FSeries T-A 1.5
$281.56List $347.04
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 23015H-100F indexable drilling. Suited for universal. Series T-A 1.5.
Specifications
Body length in6-3/32
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in4-5/8
Flute typeHelical
Length typeIntermediate
Maximum drill depth in4-5/8
Maximum drill diameter in15/16
Minimum drill diameter in55/64
Overall length in8-3/8
Primary workpiece materialUniversal
Shank diameter in1
Shank length in2-9/32
Shank typeFlatted
Spade drill lengthIntermediate
Tool materialSteel
Tool performanceGeneral Purpose
