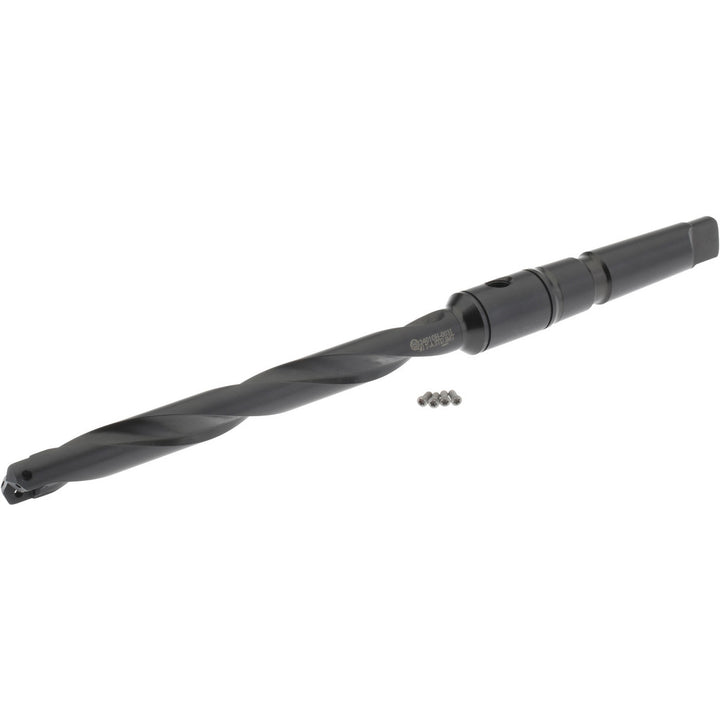

Indexable Drilling - Allied Machine and Engineering 24010H-003I
MFR# 24010H-003ISeries T-A 1
$279.79List $344.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 24010H-003I indexable drilling. Suited for universal. Series T-A 1.
Specifications
Body length in7-7/8
Coolant entry style code2-Radial Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in6-3/4
Flute typeHelical
Length typeStandard
Maximum drill depth in6-3/4
Maximum drill diameter in15/16
Minimum drill diameter in45/64
Overall length in13-5/32
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-3SR
Shank diameter in15/16
Shank length in3-15/16
Shank taper size3MT
Shank typeTaper
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
