Allied Machine and Engineering

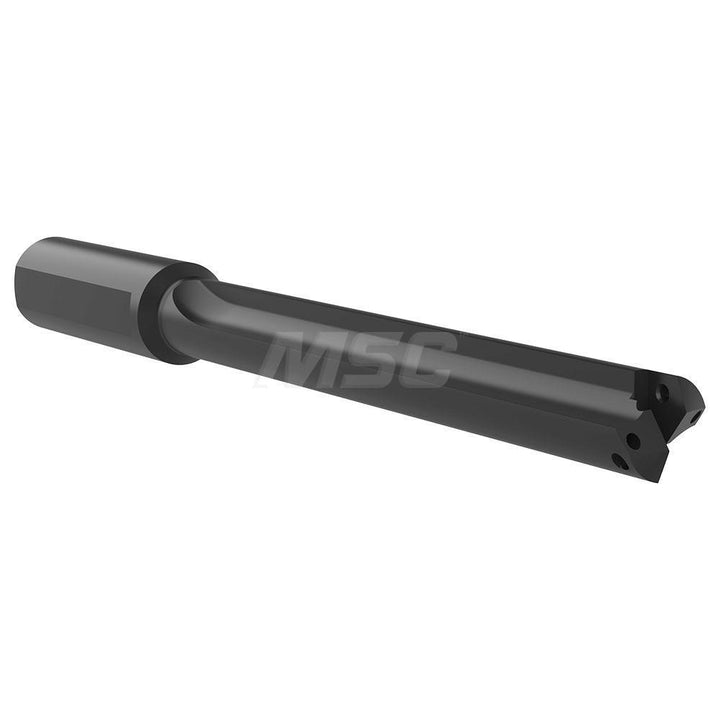

Indexable Drilling - Allied Machine and Engineering 24020S-125L
MFR# 24020S-125LSeries T-A 2
$264.41List $324.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 24020S-125L indexable drilling. Suited for universal. Series T-A 2.
Specifications
Body length in8-1/2
Coolant entry style code3- Axial Concentric & Radial
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in7-3/8
Flute typeStraight
Length typeStandard
Maximum drill depth in7-3/8
Maximum drill diameter in1-3/8
Minimum drill diameter in31/32
Overall length in12
Primary workpiece materialUniversal
Shank diameter in1-1/4
Shank length in3-1/2
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
