Allied Machine and Engineering

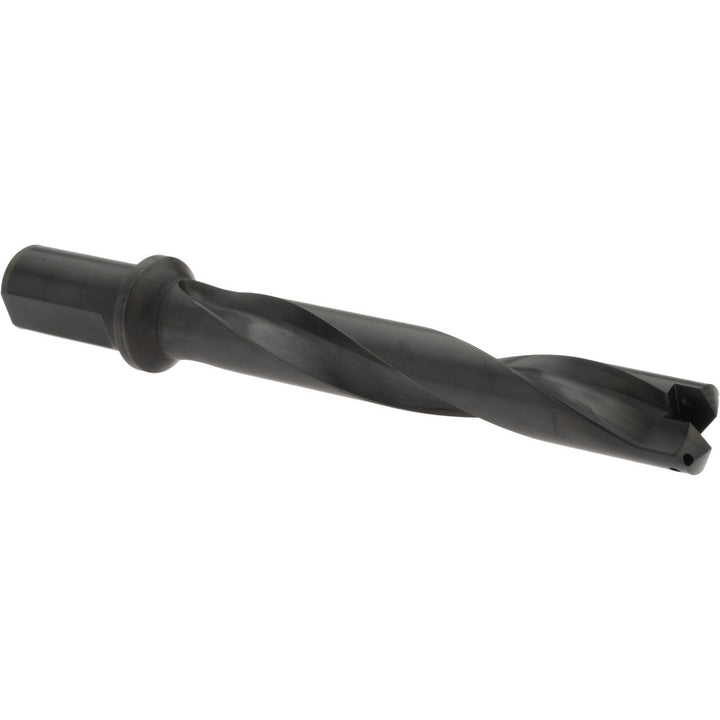

Indexable Drilling - Allied Machine and Engineering 24030H-150F
MFR# 24030H-150FSeries T-A 3
$419.44List $515.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 24030H-150F indexable drilling. Suited for universal. Series T-A 3.
Specifications
Body length in10-5/16
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in8-1/4
Flute typeHelical
Length typeStandard
Maximum drill depth in8-1/4
Maximum drill diameter in1-7/8
Minimum drill diameter in1-13/32
Overall length in13
Primary workpiece materialUniversal
Shank diameter in1-1/2
Shank length in2-11/16
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
