Allied Machine and Engineering

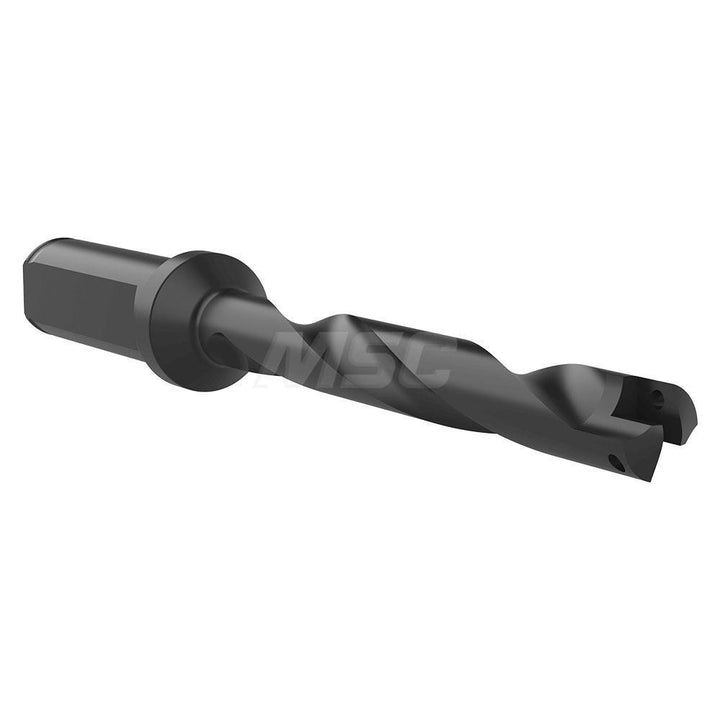

Indexable Drilling - Allied Machine and Engineering 24500H-075F
MFR# 24500H-075FSeries T-A 0
$259.22List $319.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 24500H-075F indexable drilling. Suited for universal. Series T-A 0.
Specifications
Body length in4-5/8
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in3-1/2
Flute typeHelical
Length typeLong
Maximum drill depth in3-1/2
Maximum drill diameter in11/16
Minimum drill diameter in33/64
Overall length in6-39/64
Primary workpiece materialUniversal
Shank diameter in3/4
Shank length in2-1/32
Shank typeFlatted
Spade drill lengthStandard Plus
Tool materialSteel
Tool performanceGeneral Purpose
