Allied Machine and Engineering

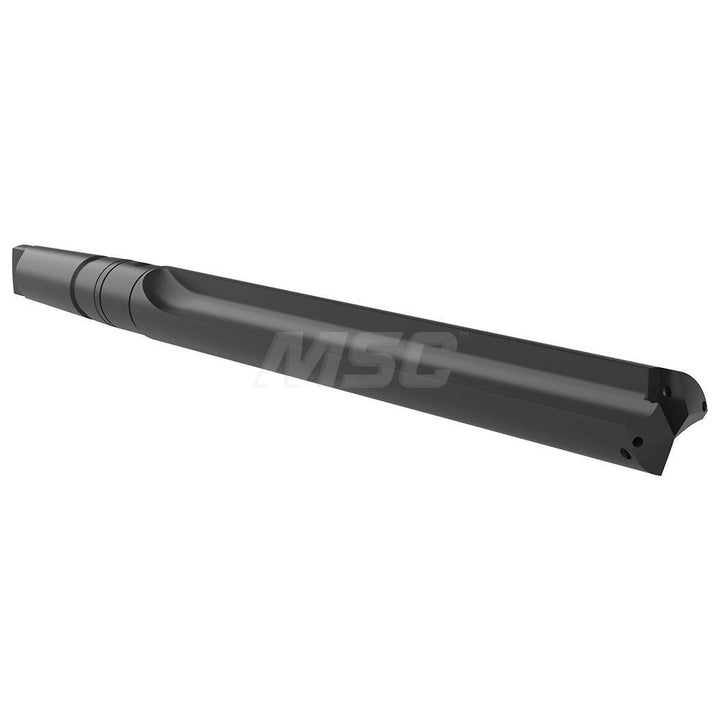

Indexable Drilling - Allied Machine and Engineering 25040S-005I
MFR# 25040S-005ISeries T-A 4
$485.79List $597.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 25040S-005I indexable drilling. Suited for universal. Series T-A 4.
Specifications
Body length in18
Coolant entry style code2-Radial Entry
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in16-5/8
Flute typeStraight
Length typeExtended
Maximum drill depth in16-5/8
Maximum drill diameter in2-9/16
Minimum drill diameter in1-29/32
Overall length in25-13/16
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-5SR
Shank diameter1.7480
Shank length in6-1/8
Shank taper size5MT
Shank typeTaper
Spade drill lengthExtended
Tool materialSteel
Tool performanceGeneral Purpose
