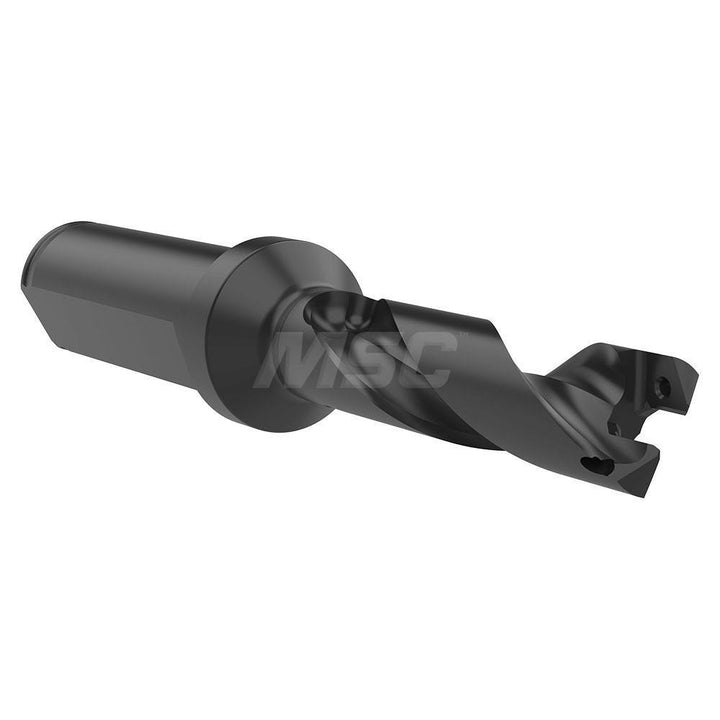

Indexable Drilling - Allied Machine and Engineering 60314H-075F
MFR# 60314H-075FSeries GEN3SYS 14
$281.56List $347.04
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 60314H-075F indexable drilling. Suited for universal. Series GEN3SYS 14.
Specifications
Body length in2-55/64
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length in1-25/32
Flute typeHelical
Length typeStandard
Maximum drill depth in1-25/32
Maximum drill diameter0.5905
Minimum drill diameter0.5512
Overall length in4-55/64
Primary workpiece materialUniversal
Shank diameter in3/4
Shank length in2-1/32
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
