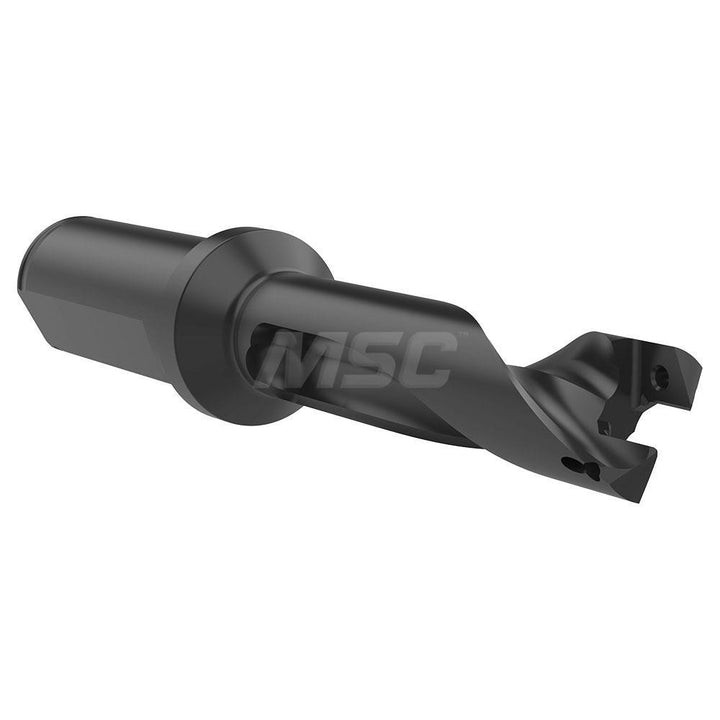

Indexable Drilling - Allied Machine and Engineering 60320S-100F
MFR# 60320S-100FSeries GEN3SYS 20
$338.33List $416.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 60320S-100F indexable drilling. Suited for universal. Series GEN3SYS 20.
Specifications
Body length in3-61/64
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length in2-17/32
Flute typeStraight
Length typeStandard
Maximum drill depth in2-17/32
Maximum drill diameter0.8660
Minimum drill diameter0.7874
Overall length in6-15/64
Primary workpiece materialUniversal
Shank diameter in1
Shank length in2-9/32
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
