Allied Machine and Engineering

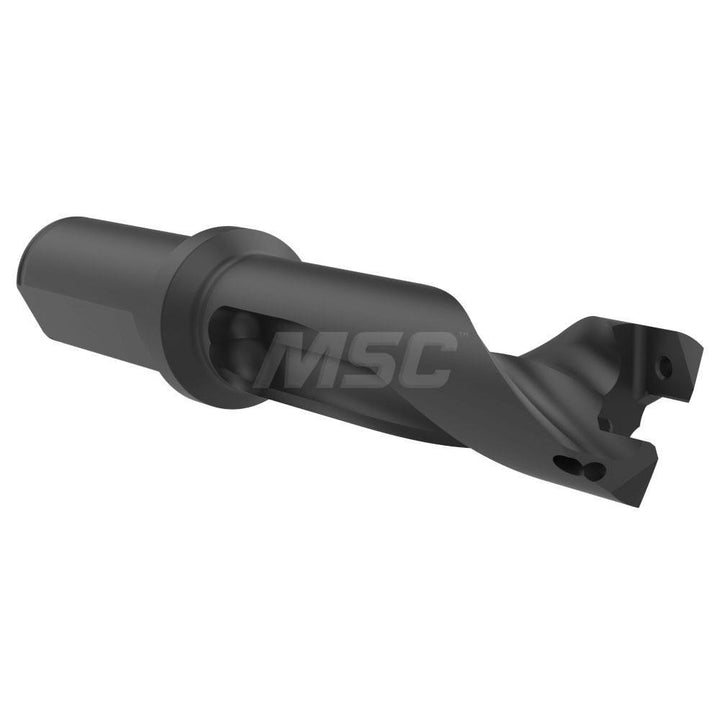

Indexable Drilling - Allied Machine and Engineering 60324S-100F
MFR# 60324S-100FSeries 24
$340.08List $410.59
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingProprietary
Description
The Allied Machine and Engineering 60324S-100F indexable drilling. Series 24.
Specifications
Body length4.4840in
Coating finishProprietary
Coolant throughNo
Drill depth by diameter ratio3xD
Maximum drill depth3.0781
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.0150
Minimum drill diameter0.9449
Overall length in6-49/64in
Shank diameter in1in
Shank length2.2813in
Shank typeStraight-Cylindrical
Toolholder styleGEN3SYS
Tool applicationDrilling
