1/4" 4-Flute Cobalt Ball End Mill, TiCN - Cleveland C32778

Cleveland

1/4" 4-Flute Cobalt Ball End Mill, TiCN - Cleveland C32778

MFR# C32778Series HGC-4B

$62.87List $79.23 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialCobalt
CoatingTiCN

Description

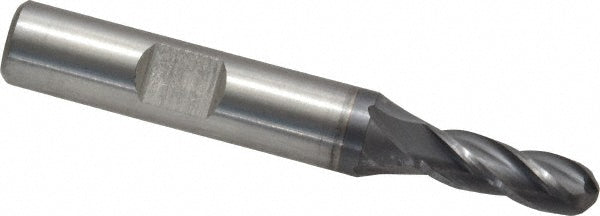

The Cleveland C32778 is a 1/4 4-flute Cobalt (M42) ball end mill with a TiCN finish for longer tool life. Suited for stainless steel, steel. 5/8 length of cut, 2-7/16 overall length. Series HGC-4B.

Specifications

ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeM42
Material removal typeFinishing
Mill diameter in1/4
Number of flutes4
Overall length in2-7/16
Primary workpiece materialStainless Steel; Steel
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel1/4" 4-Flute Solid Carbide Ball End Mill - Hertel E5252016 $50.92 Cleveland1/4" 4-Flute High Speed Steel Ball End Mill - Cleveland C33344 $78.34 Hertel1/4" 4-Flute Solid Carbide Ball End Mill - Hertel E5062901 $47.45 Kennametal1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5824522 $58.63
