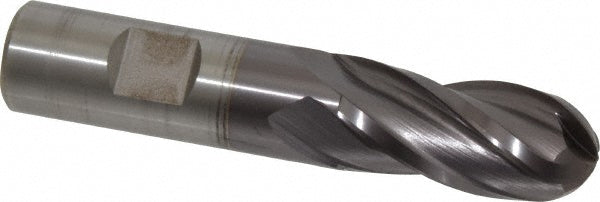

3/4" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33318

Cleveland

3/4" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33318

MFR# C33318Series HG-4B

$214.02List $274.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33318 is a 3/4 4-flute High Speed Steel ball end mill with a TiCN finish for longer tool life. Suited for cast iron, steel. 1-5/8 length of cut, 3-7/8 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length typeRegular
Material removal typeFinishing
Mill diameter in3/4
Number of flutes4
Overall length in3-7/8
Primary workpiece materialCast Iron; Steel
Shank diameter in3/4
Single or double endSingle
Variable helixNo
Variable indexNo
