Cleveland

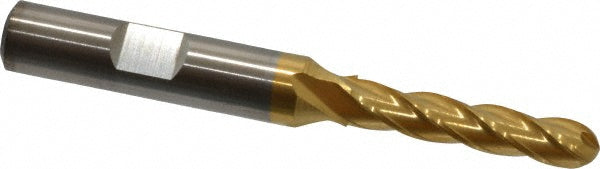

1/4" 4-Flute High Speed Steel Ball End Mill, TiN - Cleveland C33326

MFR# C33326Series HG-4B

$73.68List $94.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33326 is a 1/4 4-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, steel. 1-1/4 length of cut, 3-1/16 overall length. Series HG-4B.

Specifications

ChipbreakerNo

Coating finishTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length typeRegular

Material removal typeFinishing

Mill diameter in1/4

Number of flutes4

Overall length in3-1/16

Primary workpiece materialCast Iron; Steel

Shank diameter in3/8

Single or double endSingle

Variable helixNo

Variable indexNo
