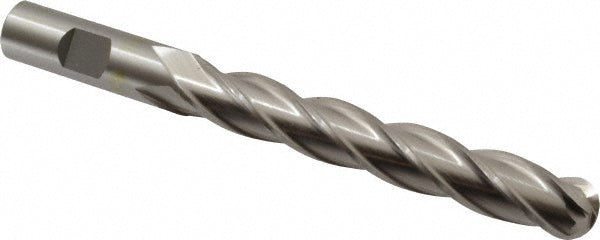

5/8" 4-Flute High Speed Steel Ball End Mill - Cleveland C33348

Cleveland

5/8" 4-Flute High Speed Steel Ball End Mill - Cleveland C33348

MFR# C33348Series HG-4B

$200.51List $257.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel
CoatingUncoated

Description

The Cleveland C33348 is a 5/8 4-flute High Speed Steel ball end mill. Suited for cast iron, steel. 4 length of cut, 6-1/8 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in4
Length typeRegular
Material removal typeFinishing
Mill diameter in5/8
Number of flutes4
Overall length in6-1/8
Primary workpiece materialCast Iron; Steel
Shank diameter in5/8
Single or double endSingle
Variable helixNo
Variable indexNo
