Cleveland

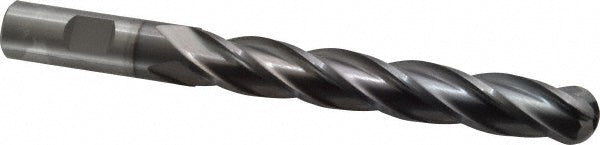

5/8" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33366
MFR# C33366Series HG-4B
$265.06List $339.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN
Description
The Cleveland C33366 is a 5/8 4-flute High Speed Steel ball end mill with a TiCN finish for longer tool life. Suited for cast iron, steel. 1-5/8 length of cut, 3-1/4 overall length. Series HG-4B.
Specifications
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length typeRegular
Material removal typeFinishing
Mill diameter in5/8
Number of flutes4
Overall length in3-1/4
Primary workpiece materialCast Iron; Steel
Shank diameter in5/8
Single or double endSingle
Variable helixNo
Variable indexNo
