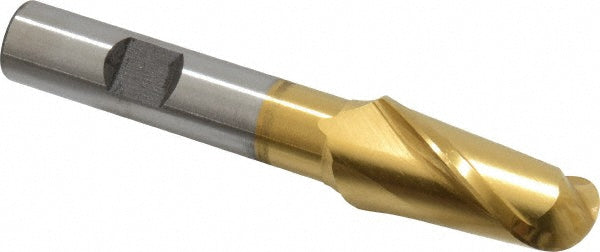

3/4" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39020

Cleveland

3/4" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39020

MFR# C39020Series HG-2B

$116.10List $148.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes2
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C39020 is a 3/4 2-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, steel. 1-5/16 length of cut, 3-5/8 overall length. Series HG-2B.

Specifications

ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/16
Length typeRegular
Material removal typeFinishing
Mill diameter in3/4
Number of flutes2
Overall length in3-5/8
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
