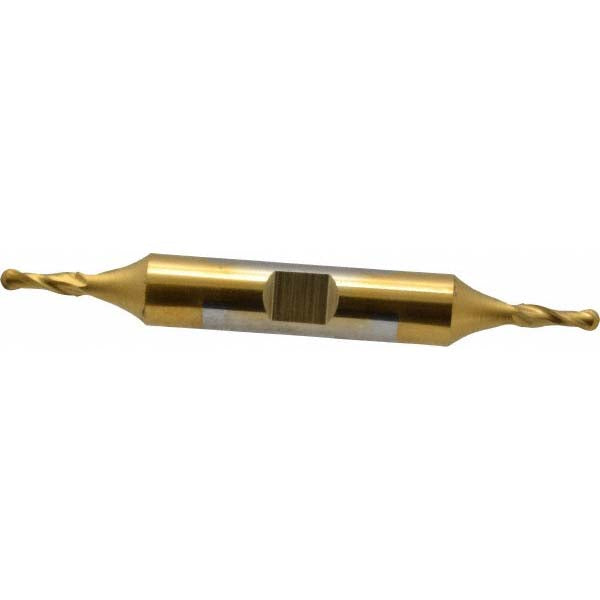

1/8" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39142

Cleveland

1/8" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39142

MFR# C39142Series HD-2B

$81.47List $102.67 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes2
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C39142 is a 1/8 2-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 3/8 length of cut, 3-1/16 overall length. Series HD-2B.

Specifications

ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeRegular
Material removal typeFinishing
Mill diameter in1/8
Number of flutes2
Overall length in3-1/16
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Single or double endDouble
Variable helixNo
Variable indexNo
