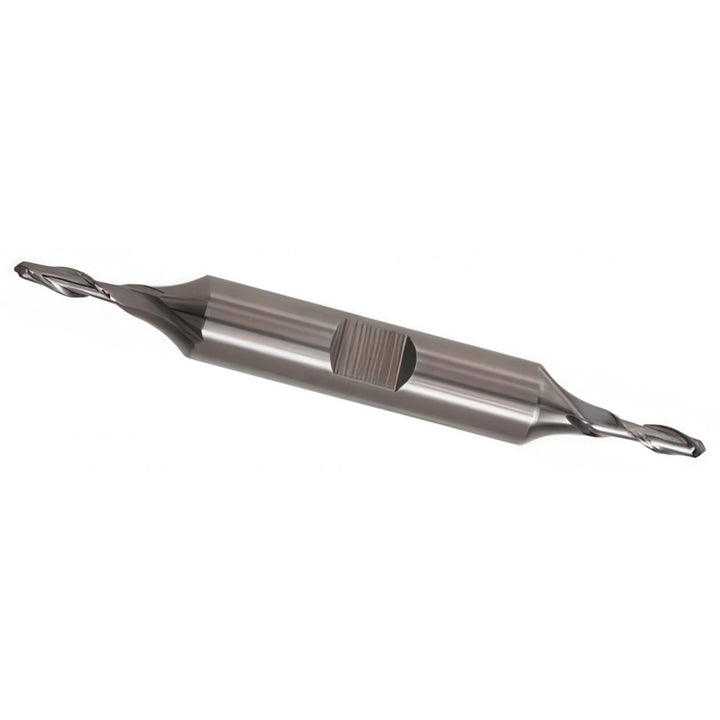

5/32" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39143

Cleveland

5/32" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39143

MFR# C39143Series HD-2B

$80.85List $103.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes2
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C39143 is a 5/32 2-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 7/16 length of cut, 3-1/8 overall length. Series HD-2B.

Specifications

ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/16
Length typeRegular
Material removal typeFinishing
Mill diameter in5/32
Number of flutes2
Overall length in3-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Single or double endDouble
Variable helixNo
Variable indexNo
