Cleveland

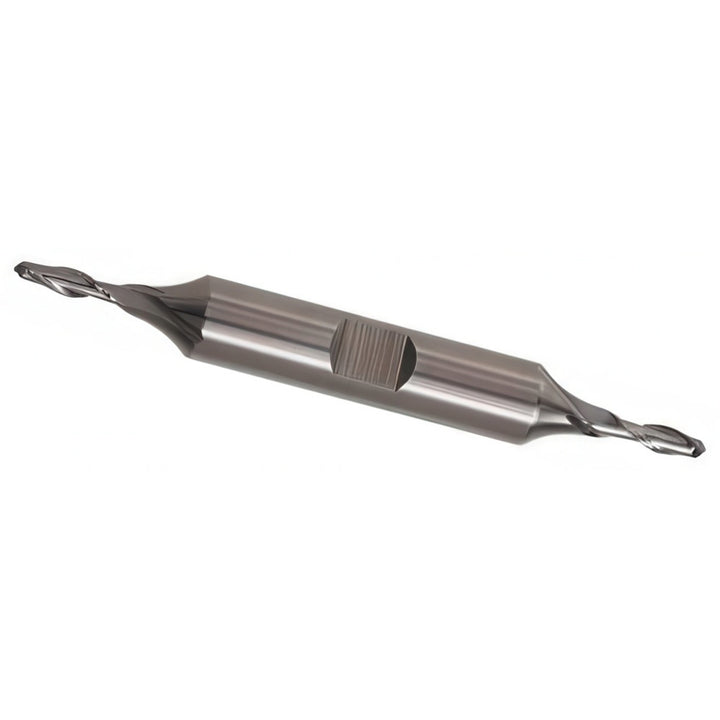

5/8" 2-Flute High Speed Steel Ball End Mill, TiN - Cleveland C39154

MFR# C39154Series HD-2B

$175.87List $225.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C39154 is a 5/8 2-flute High Speed Steel ball end mill with a TiN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 1-1/8 length of cut, 5 overall length. Series HD-2B.

Specifications

ChipbreakerNo

Coating finishTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length typeRegular

Material removal typeFinishing

Mill diameter in5/8

Number of flutes2

Overall length in5

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Single or double endDouble

Variable helixNo

Variable indexNo
