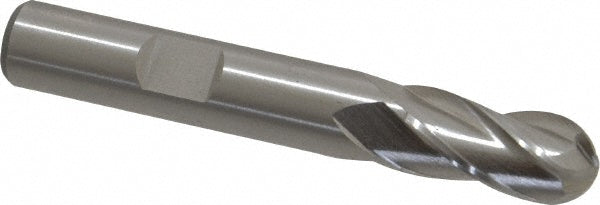

3/8" 4-Flute High Speed Steel Ball End Mill - Cleveland C41289

Cleveland

3/8" 4-Flute High Speed Steel Ball End Mill - Cleveland C41289

MFR# C41289Series HG-4B

$60.96List $76.83 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialHigh Speed Steel
CoatingUncoated

Description

The Cleveland C41289 is a 3/8 4-flute High Speed Steel ball end mill. Suited for cast iron, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material removal typeFinishing
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Steel
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
