Cleveland

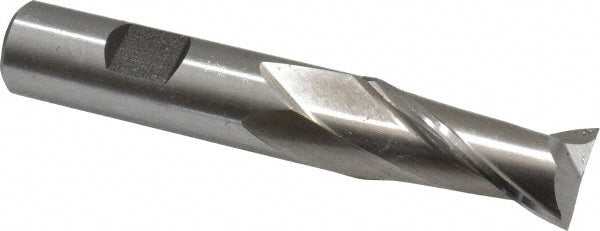

11/16" 2-Flute High Speed Steel Square End Mill - Cleveland C41626

MFR# C41626Series HG-2

$65.03List $83.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter11/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C41626 is a 11/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/16 length of cut, 3-3/4 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/16

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in11/16

Number of flutes2

Overall length in3-3/4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
