Cleveland

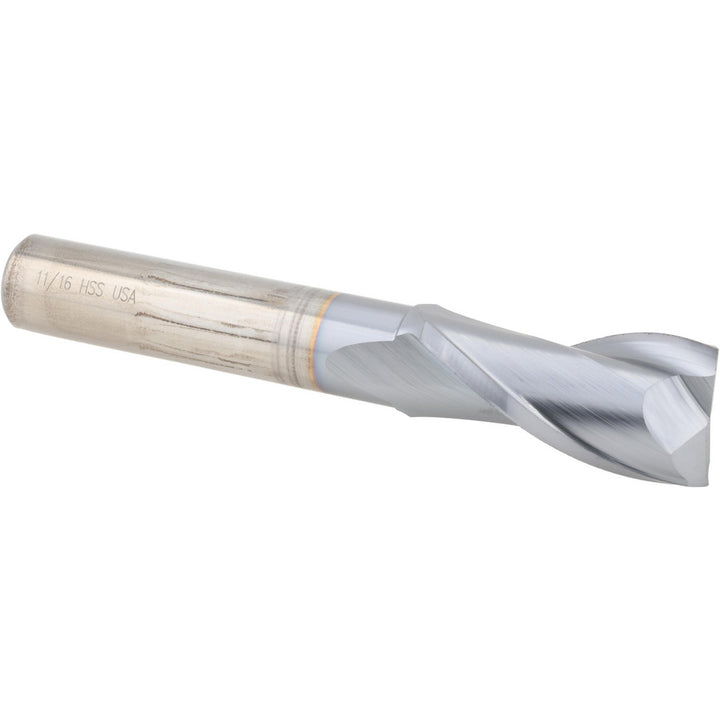

11/16" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33837

MFR# C33837Series HG-2-TC

$76.53List $98.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter11/16

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33837 is a 11/16 2-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 1-5/16 length of cut, 3-5/8 overall length. Series HG-2-TC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coating finish familyTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/16

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in11/16

Number of flutes2

Overall length in3-5/8

Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel

Shank diameter in1/2

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
