Cleveland

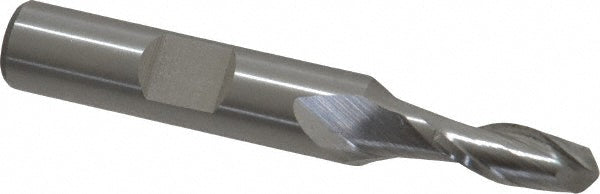

1/4" 2-Flute High Speed Steel Ball End Mill - Cleveland C42114

MFR# C42114Series HG-2B

$38.07List $48.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialHigh Speed Steel

CoatingUncoated

Description

The Cleveland C42114 is a 1/4 2-flute High Speed Steel ball end mill. Suited for cast iron, steel. 5/8 length of cut, 2-7/16 overall length. Series HG-2B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length typeRegular

Material removal typeFinishing

Mill diameter in1/4

Number of flutes2

Overall length in2-7/16

Primary workpiece materialCast Iron; Steel

Shank diameter in3/8

Single or double endSingle

Variable helixNo

Variable indexNo
