Cleveland

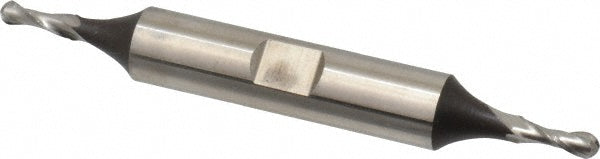

1/8" 2-Flute High Speed Steel Ball End Mill - Cleveland C42184

MFR# C42184Series HD-2B

$72.73List $93.27 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialHigh Speed Steel

CoatingUncoated

Description

The Cleveland C42184 is a 1/8 2-flute High Speed Steel ball end mill. Suited for cast iron, non-ferrous metal, steel. 3/8 length of cut, 3-1/16 overall length. Series HD-2B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length typeRegular

Material removal typeFinishing

Mill diameter in1/8

Number of flutes2

Overall length in3-1/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Single or double endDouble

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
