Cleveland

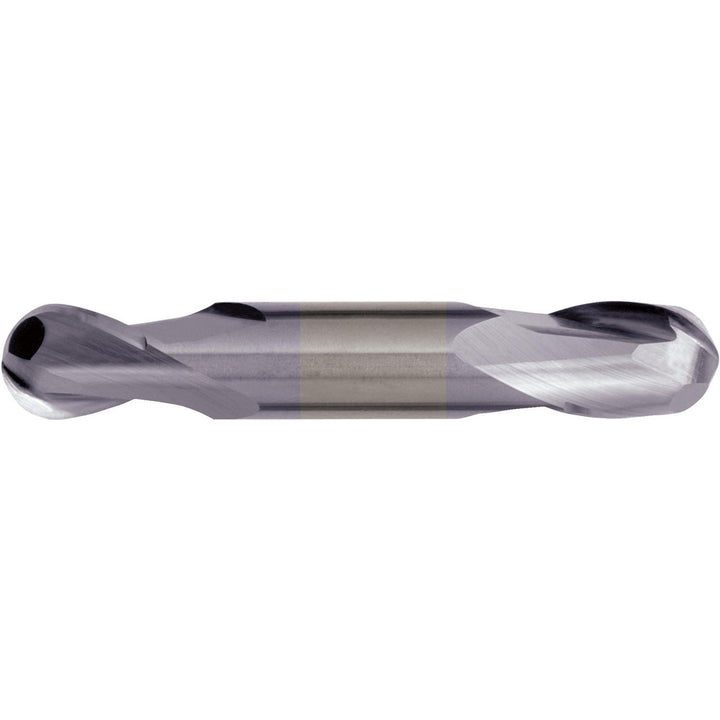

1/2" 2-Flute Solid Carbide Ball End Mill, TiAlN - Cleveland C80216
MFR# C80216Series CEM-DE-2B-TA
$293.47List $376.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Cleveland C80216 is a 1/2 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Suited for steel, cast iron. 1 length of cut, 4 overall length. Series CEM-DE-2B-TA.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1
Length typeStandard
Material gradeSubmicron
Material removal typeFinishing
Mill diameter in1/2
Number of flutes2
Overall length in4
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
