Guhring

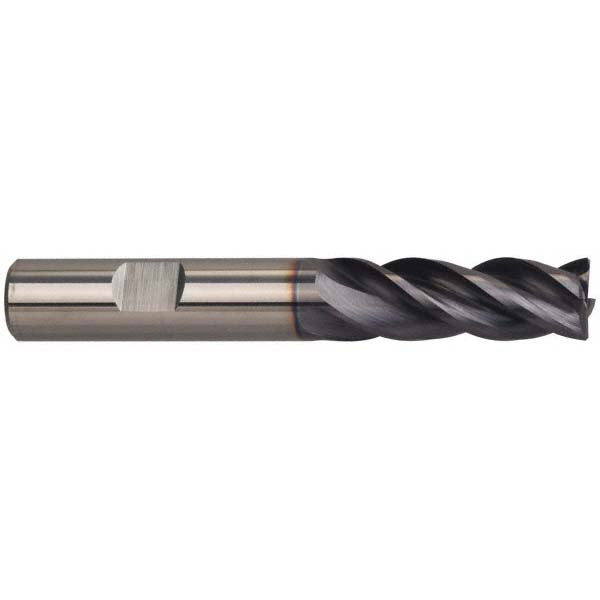

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9030770047600

MFR# 9030770047600Series 3077

$37.79List $48.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9030770047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 5/8 length of cut, 2 overall length. Series 3077.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut in5/8

Length typeRegular

Material gradeProprietary

Mill diameter in3/16

Mill diameter toleranceh10

Number of flutes4

Overall length in2

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
