Guhring

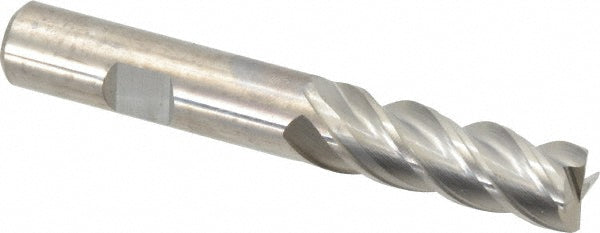

1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9030770127000

MFR# 9030770127000Series 3077

$123.19List $158.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9030770127000 is a 1/2 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 3077.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40; 42

Length of cut in1-1/4

Length typeRegular

Material gradeProprietary

Maximum helix angle42

Mill diameter in1/2

Mill diameter toleranceh10

Minimum helix angle40

Number of flutes4

Overall length in3-1/2

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexNo
