Guhring

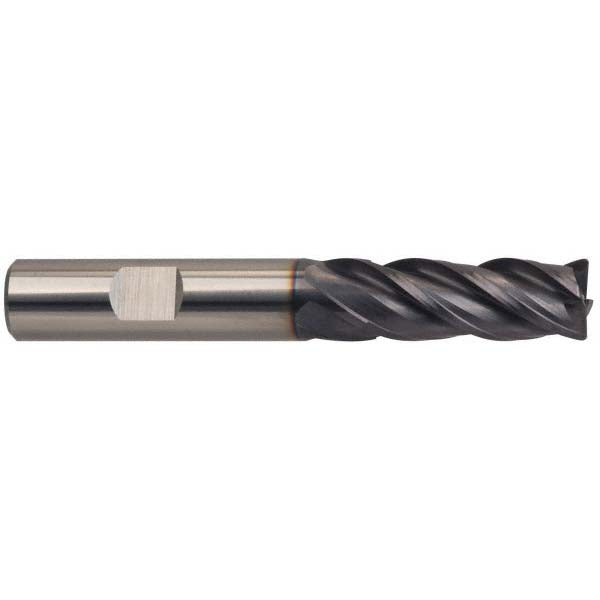

3/4" 4-Flute Solid Carbide Corner Radius End Mill, FIREX - Guhring 9030790190590

MFR# 9030790190590Series 3079

$351.10List $450.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030790190590 is a 3/4 4-flute Solid Carbide corner radius end mill with a FIREX finish for longer tool life. Suited for steel, cast iron. 1-1/2 length of cut, 4 overall length. Series 3079.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Corner radius in1/8

Corner radius tolerance-0.002 to 0.002 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1-1/2

Length typeStandard

Material applicationSteel; Cast Iron; Stainless Steel; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter toleranceh10

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Cast Iron

Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
